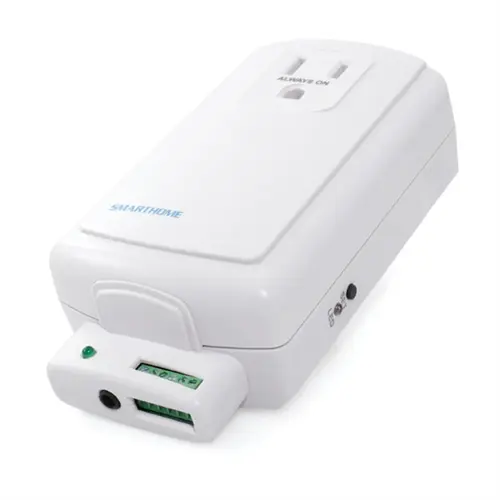

INSTEON IOLinc Low Voltage Input Output Interface Module

The Insteon I/O Linc plugs into a wall outlet and provides a single dry contact closure input, and a single relay output (Form C – both normally open & normally closed contacts). Once connected it can be linked to your Insteon automation system to provide integration with sensors, trigger garage doors and other contacts and provide basic alarm panel integration.

The input is compatible with any contact closure device such as a door/window sensor, garage door (overhead door) magnetic contact, water sensor, floor sensor, etc. This is NOT a voltage input, it is a dry contact input.

The output is a Form C relay which means it provides both normally open and normally closed connections. It operates in 4 modes:

1. Latching (continuous) – stays open/closed until triggered
2. Momentary A – responds to either ‘Insteon On’ or ‘Insteon Off’ command but not both
3. Momentary B – responds to both ‘Insteon On’ and ‘Insteon Off’ signals
4. Momentary C – Uses IOLinc input to determine if it should respond to Insteon signal

Momentary duration can be set from 0.2 seconds to 25 seconds with a default of 2 seconds.

For more details on alarm panel integration, visit our knowledgebase.

2450 – Insteon I/O Linc Features:

• Compatible with INSTEON systems
• Single dry contact input and single relay output
• Relay has both normally open and normally closed connections
• Relay output rated 5A @ 30VAC or 30VDC
• Output relay has 4 duration settings
• Pass-thru outlet built-in
• 2-year warranty
• cETL certified, confirms to CSA standards
