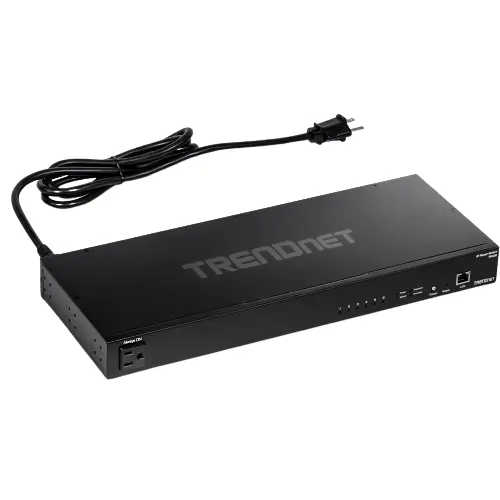

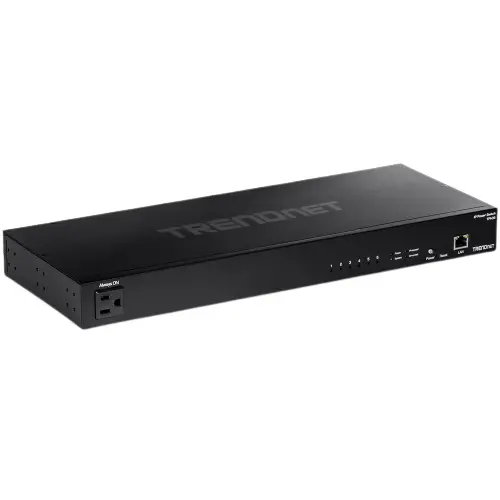

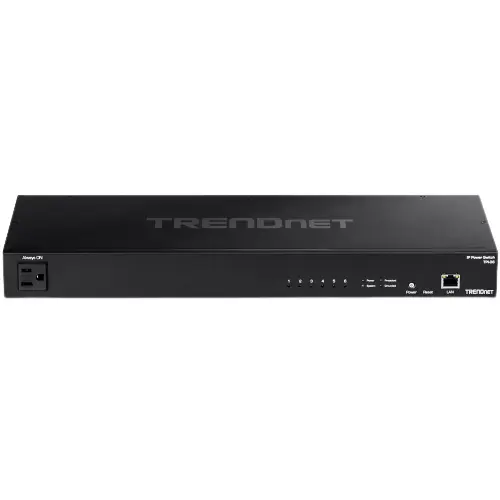

TRENDnet Rackmount 6 Outlet Managed PDU Power Distribution Unit, HIVE Cloud

TRENDnet’s 6-Outlet Managed Rackmount Power Distribution Unit, model TPI-06, provides a networkable power solution with intelligent monitoring and management capabilities. Automate outlet reboot settings in case of connection loss to ensure efficient usage of available resources, control power consumption, and protect the safety of connected equipment. Fanless design eliminates operating noise.

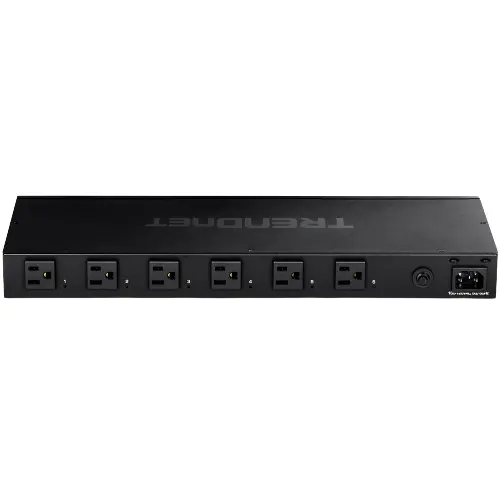

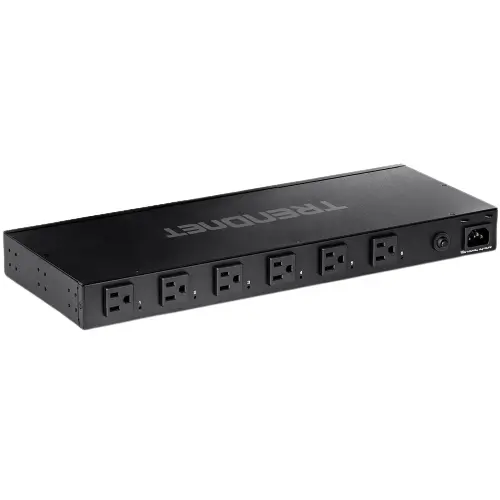

The 6-Outlet Managed Rackmount Power Distribution Unit features six NEMA 5-15R managed power outlets, one NEMA 5-15R bypass power outlet, and one gigabit port. Each managed power outlet is controllable individually. The TPI-06 PDU filters AC for best electronics performance, while simultaneously reducing excess energy usage with power scheduling.

Easily manage and configure the power distribution unit remotely with TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with TRENDnet’s reliable cloud service.

TRENDnet’s 6-Outlet Managed Rackmount Power Distribution Unit Features:

• Managed PDU
• Ports
• Hive Enabled
• Fanless
• Email Notifications
• 1U 19” Rack Mountable
• LED Indicators

TRENDnet’s 6-Outlet Managed Rackmount Power Distribution Unit Specifications:

• Device Interface
  • 6 x NEMA 5-15R (15A max. @ 120V AC)
  • 1 x NEMA 5-15R-Bypass (15A max. @ 120V AC)
  • 1 x Gigabit port • LED indicators
• Power Output:
  • 100 – 120V , 50/60Hz
  • Max. 15A per outlet
• Power Input:
  • 100 – 120V, 50/60Hz, internal power supply
  • Max. consumption: 6.87W (no PD load)
• Hive Cloud Management
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC, Mac web browser or through an Android or iOS mobile device
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple PDUs
  • Event/hardware network monitoring (CPU/memory utilization)
  • Enable & disable power, set auto reboot check, configure power scheduling, and monitor power usage
• Special Features:
  • Fanless
  • Rack mountable
  • Detachable power cord
• Operating Temperature: 0° – 40° C (23° – 104° F)
• Operating Humidity: Max. 90% non-condensing
• Dimensions: 440 x 170 x 44mm (17.32 x 6.69 x 1.73 in.)
• Weight: 2.389kg (5.27 lbs.)
• Certifications:
  • FCC
  • UL
• Warranty: 3 Year
• Package Contents:
  • TPI-06
  • Quick Installation Guide
  • Power cord (1.8m / 6 ft.)
  • Rack mount kit
